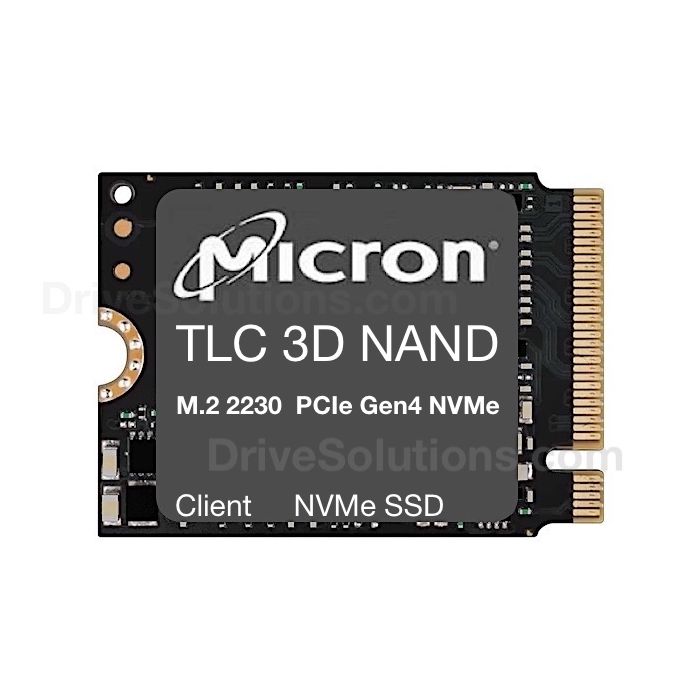

512GB PCIe NVMe Gen4 TLC 3D NAND HMB Cache M.2 2230 Solid State Drive - 00PV5C
$71.00
- Genuine Dell Part
| Condition | New |
|---|---|
| Warranty | 1 Year |
| Availability | In Stock |
| Manufacturer | Micron Technology, Inc |
|---|---|
| UPC Code | Does Not Apply |
Details
Product Specs
| Capacity | 512 GB |
|---|---|
| Cache Buffer | Host-Memory-Buffer (HMB) Pseudo-SLC Caching |
| Flash Type | Micron (G9) 276-layer TLC 3D NAND Flash Memory (Tri-Level Cell) |
| Form Factor | M.2 2230-S2-M (M Key Single Sided) |
| Interface Speed | PCIe Express NVMe Generation 4.0 x4, NVMe 1.4 (4-Lanes) |
| Interface Connector | M.2 NGFF (M Key) |
| Sequential Read | up to 7,000 MB/sec (128KB Crystal Mark Disk) |
| Sequential Write | up to 4,800 MB/sec (128KB Crystal Mark Disk) |
| Random Read | up to 740,000K IOPS (QD32) |
| Random Write | up to 1,000,000K IOPS (QD32) |
| SSD Endurance | 300 TBW (Total Bytes Written) |
| Life Expectancy | 2 Million Hours MTTF (Mean Time To Failures) |
| Shock Resistance | 1,500G @0.5 ms half sine, 3 pulses per face |
| Ecc Recovery | Low-Density Parity Check (LDPC) Error Correction Technology |
| Encryption | TCG Pyrite 2.01; ATA Security Passthrough over NVMe |
| Rohs Compliant | Yes |
| Dimensions | (L x W x H) 30.0mm x 22.0mm x 2.38mm |
| Notes | Bare Drive (No Bracket, Connector or Screws) |
| Classification | Pro Level |
Key Features
- Fast Start-Up, Loading and File Transfers
- Shock and Vibration Resistant
- Incredible PCIe NVMe Generation 4.0 x4 Performance
- Firmware Activation without Reset
- Performance Enhancing Accelerated Caching
- Host Memory Buffer (HMB) SLC Caching
- Phison Triple Core 4-Channel Controller
- Micron G9 TLC NAND Flash Memory
- Basic Management Commands (BMC) Technology
- Active Garbage Collection
- Host Controlled Thermal Management
- SMBus Technology
- Low Power Consumption
- Power Loss Protection (data at rest)
- Power Loss Signal Support Technology
- Bad Block Management Technology
- Dynamic and Static Wear Leveling Technology
- Dynamic Write Acceleration Technology
- Host Controlled Thermal Management (HCTM) Technology
- Trim Support Technology
- Enhanced Defect and Error Management Technology
- Advanced Hardware LDPC ECC Technology
- Built for Laptops, Desktops, Workstations and All-in-One PCs
